HIGHLIGHTS
* Vivo X Fold 2 officially launched in China over the weekend.
* The teardown video shows the large copper alloy VC for heat dissipation, Snapdragon 8 Gen2 SoC, triple Zeiss cameras, and an improved hinge.
* Vivo X Fold 2 has a price tag of RMB 8,999 (which translates to Rs 1,07,500).
Vivo X Fold2 foldable was launched in China over the weekend as a follow-up to the X Fold from last year. Just a day after the announcement, a teardown video of the phone surfaced online, showing the entire internal components of the device. Chinese blogger, WekiHome has shared the detailed disassembly video of the X Fold 2.
The video also includes camera samples and benchmark tests of the Vivo foldable. This showed that Snapdragon 8 Gen2 was able to handle its fort well under stress and the large copper alloy VC aids for better cooling.
Barely a day after the official unveiling of the Vivo X Fold2 in China, a teardown video of the smartphone has surfaced. The teardown video of the X Fold2 shows all the major components of the smartphone. The teardown video was shared by WekiHome and the video is quite detailed.
The vivo X Fold2 is yet to make its way to overseas markets but already a detailed video of its internals is now available. The X Fold2 disassembly video was about 12 minutes long and also included some benchmark tests for the device, as well as some camera samples.
The new smartphone’s hinge mechanism was displayed during the video. The X Fold2 is powered by a Snapdragon 8 Gen 2 SoC and it performed well during the performance test. Its large copper alloy VC sink was effective in optimal heat management.
The X Fold2 has an 8.03-inch E6 AMOLED display with a resolution of 2160 x 1916 pixels and a 120Hz refresh rate. The panel delivers an aspect ratio of 4:3.55 and the new droplet-style hinge system is lighter and more durable than its predecessors – the X Fold and X Fold+.
It also has a 6.53-inch AMOLED cover screen with a resolution of 2520 x 1080 pixels and a 120Hz refresh rate. The smaller screen has an aspect ratio of 21:9 and both panels feature 16MP front-facing cameras. The vivo X Fold2 is 30g lighter and 1.5mm slimmer than its predecessor.
The Vivo X Fold2 supported up to 108W fast charging and it took just 27 minutes to fully charge the phone. The nominal wired charging capacity of the model is 120W and its reworked hinge mechanism is a major improvement. The video is originally in Chinese but other users can enable closed captions and auto-translate to get the details of the content. The vivo X Fold2 and X Flip were unveiled with the Snapdragon 8 series chipsets and Zeiss cameras.
Vivo X Fold 2 Teardown

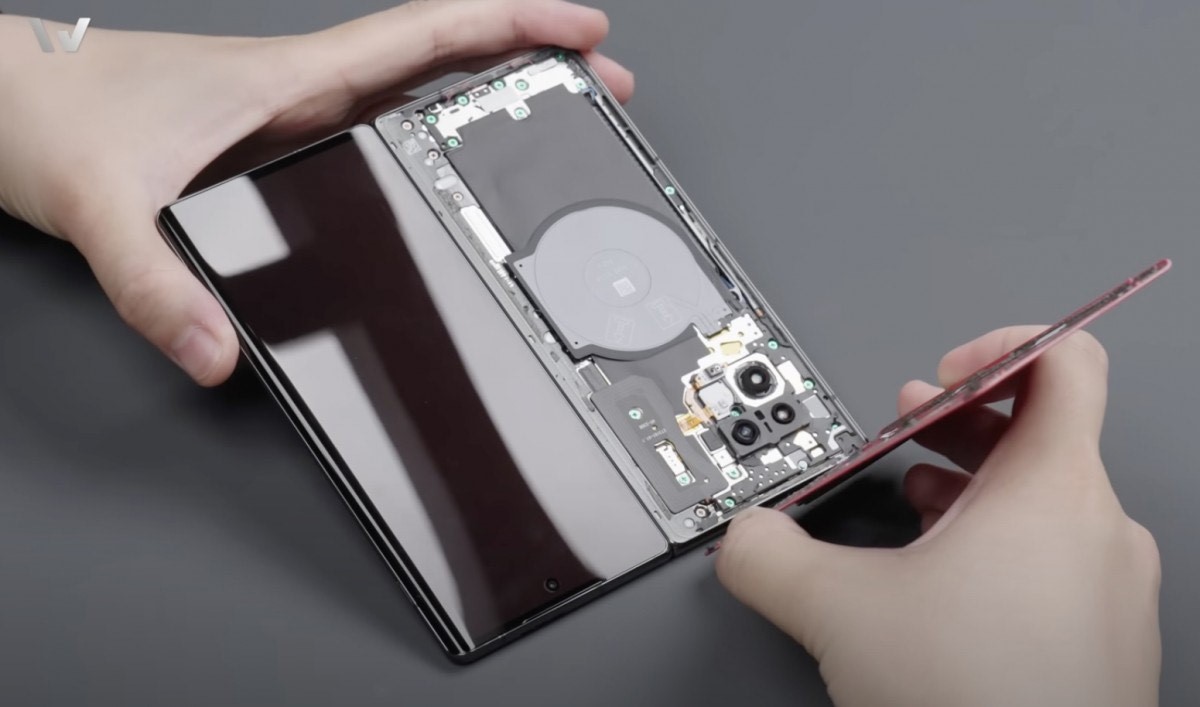

The Vivo X Fold 2 teardown starts by opening the leather back cover of the phone, which has cutouts for triple camera sensors in a circular module and an LED flash. Moving along, next, we see the blogger opening the front screen of the foldable and this has a centre-positioned cutout for the selfie shooter. The cover screen was able to achieve a maximum brightness of up to 1100+ nits. The main screen was able to touch 1300nits peak brightness.

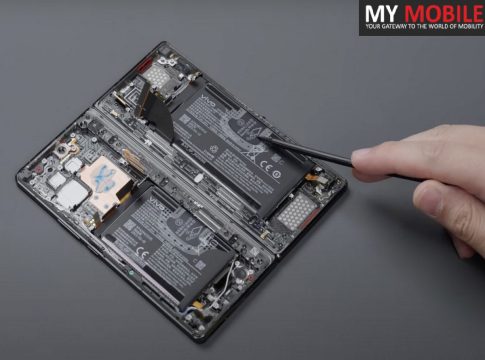

The teardown then proceeds to strip opening the complete internals of the phone, including the camera cutouts. We also see the wireless charging coil as well. The teardown shows the hinge and how strong it is.
The video compares the hinge weight of the Vivo X Fold and X Fold 2. While the processor weighed in at 4.12 grams, the successor is lighter at 3.03 grams. We see the presence of LPDDR5X RAM and UFS 4.0 storage components, Snapdragon 8 Gen2 SoC and a V2 chipset. Overall, the Vivo X Fold2 packs in quite a lot to take on the Samsung Galaxy Z Fold 4.
VIVO X FOLD 2 KEY SPECIFICATIONS
Key Specs
| RAM | 12 GB |
| Processor | Qualcomm Snapdragon 8 Gen 2 |
| Rear Camera | 50 MP + 10 MP + 50 MP |
| Front Camera | 32 MP |
| Battery | 4800 mAh |
| Display | 8.03 inches (20.4 cm) |
General
| Launch Date | July 19, 2023 (Unofficial) |
Performance
| Chipset | Qualcomm Snapdragon 8 Gen 2 |
| CPU | Octa core (3.2 GHz, Single core, Cortex X3 + 2.8 GHz, Quad core, Cortex A715 + 2 GHz, Tri core, Cortex A510) |
| Architecture | 64 bit |
| Fabrication | 4 nm |
| Graphics | Adreno 740 |
| RAM | 12 GB |
Display
| Display Type | AMOLED |
| Screen Size | 8.03 inches (20.4 cm) |
| Resolution | 1916 x 2160 pixels |
| Pixel Density | 360 ppi |
| Screen Protection | Corning Gorilla Glass |
| Bezel-less display | Yes with punch-hole display |
| Touch Screen | Yes, Capacitive Touchscreen, Multi-touch |
| Refresh Rate | 120 Hz |
| Screen to Body Ratio (claimed by the brand) | 90.45 % |
| Display Colour | 16M |
Camera
| MAIN CAMERA | ||
| Camera Setup | Triple | |
| Resolution | 50 MP + 10 MP + 50 MP Triple Primary Cameras | |
| Autofocus | Yes | |
| Flash | Yes, LED Flash | |
| Image Resolution | 8150 x 6150 Pixels | |
| Settings | Exposure compensation, ISO control | |
| Shooting Modes | Continuous Shooting High Dynamic Range mode (HDR) |
|
| Camera Features | Digital Zoom Auto Flash Face detection Touch to focus |
|
| Video Recording | 3840×2160 @ 30 fps 1920×1080 @ 30 fps |
|
| FRONT CAMERA | ||
| Camera Setup | Single | |
| Resolution | 32 MP Front Camera | |
| Video Recording | 1920×1080 @ 30 fps | |
Battery
| Capacity | 4800 mAh |
| Type | Li-Polymer |
| Removable | No |
| Wireless Charging | Yes |
| Quick Charging | Yes, Fast, 66W |
| USB Type-C | Yes |
Storage
| Internal Memory | 256 GB |
| Expandable Memory | No |
Network & Connectivity
| SIM Slot(s) | Dual SIM, GSM+GSM |
| SIM Size | SIM1: Nano, SIM2: Nano |
| Network Support | 5G Not Supported in India, 4G Supported in India, 3G, 2G |
| VoLTE | Yes |
| SIM 1 |
4G Bands:
TD-LTE 2300(band 40)
FD-LTE 1800(band 3) 3G Bands:
UMTS 1900 / 2100 / 850 / 900 MHz
2G Bands:
GSM 1800 / 1900 / 850 / 900 MHz
GPRS:
Available
EDGE:
Available
|
| SIM 2 |
4G Bands:
TD-LTE 2300(band 40)
FD-LTE 1800(band 3) 3G Bands:
UMTS 1900 / 2100 / 850 / 900 MHz
2G Bands:
GSM 1800 / 1900 / 850 / 900 MHz
GPRS:
Available
EDGE:
Available
|
| Wi-Fi | Yes, Wi-Fi 4 (802.11 b/g/n) |
| Wi-Fi Features | Mobile Hotspot |
| Bluetooth | Yes, v5.3 |
| GPS | Yes with A-GPS, Glonass |
| NFC | Yes |
| USB Connectivity | Mass storage device, USB charging |
Multimedia
| Loudspeaker | Yes |
| Audio Jack | USB Type-C |
| Video Player | Yes, Video Formats: MP4 |
| Ring Tone | Music ringtones, Vibration |
| Music | Yes, Music Formats: MP3 |
Sensors
| Fingerprint Sensor | Yes |
| Fingerprint Sensor Position | Side |
| Other Sensors | Light sensor, Proximity sensor, Accelerometer, Compass, Gyroscope |
| Games | Yes |
| Browser | Yes, HTML |
| Phone Book | Yes, Practically Unlimited |
| Yes | |
| Instant Messaging | Yes |
| Other Facilities | Android Market, Calculator, World clock, Calendar, Alarm, Document viewer |
Faqs on Vivo X Fold 2
1) Who shared the Vivo X Fold 2 Dismantling video ?
Ans) Chinese bloggers WekiHome shared a detailed disassembly video of the X Fold2.
2) What did the Vivo X Fold 2 video show ?
Ans) The nearly 12-minute video also includes some camera samples and benchmark tests of the latest vivo foldable. Seeing the inside workings of a foldable phone is always interesting and we can see a detailed breakdown of the phone’s new hinge mechanism at the 7:30 mark.
The Snapdragon 8 Gen 2 chipset performed great under sustained stress and its large copper alloy VC sink certainly helps in that regard. A full charge took 27 minutes and the phone hit a peak charging speed of 108W.
